Home 2002 Chrysler Concorde LX 2.7L V6 - Gas Case and Extension

Case and Extension for 2002 Chrysler Concorde

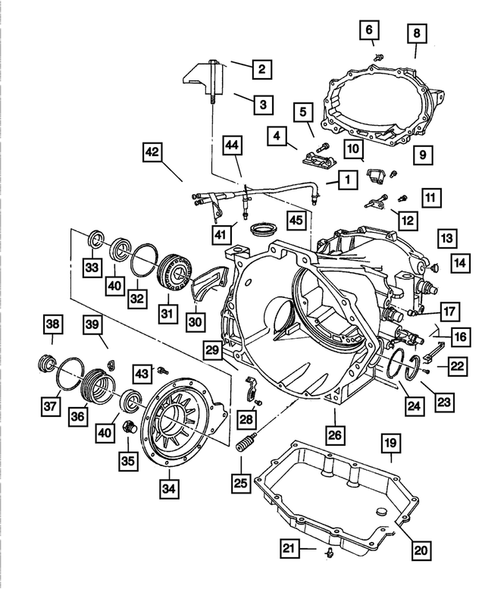

Case and Extension for 2002 Chrysler Concorde #0

Case and Extension for 2002 Chrysler Concorde #1

Case and Extension for 2002 Chrysler Concorde #0

1

10

12

13

14

16

17

19

2

20

21

22

23

24

25

26

28

29

3

30

31

32

33

34

35

36

37

38

39

4

40

40

41

42

43

44

45

5

6

8

9

No.

Part # / Description / Price

Price

N/A

4531412 - Automatic Transaxle 4 Speed: Dowel Bushing for Mopar Image

Dowel Bushing

Mopar

Mopar

Notes: Engines: 2.7L V6 24V W/ACTIVE INTAKE ENGINE. 2.7L V6 DOHC 24 VALVE MPI ENGINE. 3.2L V6 SOHC 24 VALVE MPI ENGINE. 3.5L V6 HIGH OUTPUT 24V MPI ENGINE. 3.5L V6 SOHC 24 VALVE ENGINE. 3.5L V6 SOHC 24V ENGINE. Transmissions: 4-SPEED AUTOMATIC TRANSMISSION.

Description: Valve Body to Case.

Not For Sale

Not For Sale

N/A

6501657AB - Automatic Transaxle 4 Speed: Trans Speed Sensor O Ring for Mopar Image

Trans Speed Sensor O Ring

Mopar

Mopar

Notes: Engines: 2.7L V6 24V W/ACTIVE INTAKE ENGINE. 2.7L V6 DOHC 24 VALVE MPI ENGINE. 3.2L V6 SOHC 24 VALVE MPI ENGINE. 3.5L V6 HIGH OUTPUT 24V MPI ENGINE. 3.5L V6 SOHC 24 VALVE ENGINE. 3.5L V6 SOHC 24V ENGINE. Transmissions: 4-SPEED AUTOMATIC TRANSMISSION.

Description: Fwd. 22mm. Output Speed Sensor. Input speed sensor.

Not For Sale

Not For Sale

N/A

6100155 - Automatic Transaxle 4 Speed: Hex Head Bolt for Mopar Image

Hex Head Bolt

Mopar

Mopar

Notes: Engines: 2.7L V6 24V W/ACTIVE INTAKE ENGINE. 2.7L V6 DOHC 24 VALVE MPI ENGINE. 3.2L V6 SOHC 24 VALVE MPI ENGINE. 3.5L V6 HIGH OUTPUT 24V MPI ENGINE. 3.5L V6 SOHC 24 VALVE ENGINE. 3.5L V6 SOHC 24V ENGINE. Transmissions: 4-SPEED AUTOMATIC TRANSMISSION.

Description: M8x30. Valve Body To Case

Not For Sale

Not For Sale

N/A

6504255 - Automatic Transaxle 4 Speed: Tranmission Case Stud for Mopar Image

Tranmission Case Stud

Mopar

Mopar

Notes: Engines: 2.7L V6 24V W/ACTIVE INTAKE ENGINE. 2.7L V6 DOHC 24 VALVE MPI ENGINE. 3.2L V6 SOHC 24 VALVE MPI ENGINE. 3.5L V6 HIGH OUTPUT 24V MPI ENGINE. 3.5L V6 SOHC 24 VALVE ENGINE. 3.5L V6 SOHC 24V ENGINE. Transmissions: 4-SPEED AUTOMATIC TRANSMISSION.

1

4765013 - Automatic Transaxle 4 Speed: Transmission Vent Hose for Mopar Image

Transmission Vent Hose

Mopar

Mopar

Notes: Engines: 2.7L V6 24V W/ACTIVE INTAKE ENGINE. 2.7L V6 DOHC 24 VALVE MPI ENGINE. 3.2L V6 SOHC 24 VALVE MPI ENGINE. 3.5L V6 HIGH OUTPUT 24V MPI ENGINE. 3.5L V6 SOHC 24 VALVE ENGINE. 3.5L V6 SOHC 24V ENGINE. Transmissions: 4-SPEED AUTOMATIC TRANSMISSION.

Description: Transmission Vent Hose

2

6502894 - Automatic Transaxle 4 Speed: Bolt for Mopar Image

Bolt

Mopar

Mopar

Notes: Engines: 2.7L V6 24V W/ACTIVE INTAKE ENGINE. 2.7L V6 DOHC 24 VALVE MPI ENGINE. 3.2L V6 SOHC 24 VALVE MPI ENGINE. 3.5L V6 HIGH OUTPUT 24V MPI ENGINE. 3.5L V6 SOHC 24 VALVE ENGINE. 3.5L V6 SOHC 24V ENGINE. Transmissions: 4-SPEED AUTOMATIC TRANSMISSION.

3

4567150 - Automatic Transaxle 4 Speed: Transmission Solenoid Connector Retainer for Mopar Image

Transmission Solenoid Connector Retainer

Mopar

Mopar

Notes: Engines: 2.7L V6 24V W/ACTIVE INTAKE ENGINE. 2.7L V6 DOHC 24 VALVE MPI ENGINE. 3.2L V6 SOHC 24 VALVE MPI ENGINE. 3.5L V6 HIGH OUTPUT 24V MPI ENGINE. 3.5L V6 SOHC 24 VALVE ENGINE. 3.5L V6 SOHC 24V ENGINE. Transmissions: 4-SPEED AUTOMATIC TRANSMISSION.

4

4778989 - Automatic Transaxle 4 Speed: Drive Chain Snubber Package for Mopar Image

Drive Chain Snubber Package

Mopar

Mopar

Notes: Engines: 2.7L V6 24V W/ACTIVE INTAKE ENGINE. 2.7L V6 DOHC 24 VALVE MPI ENGINE. 3.2L V6 SOHC 24 VALVE MPI ENGINE. 3.5L V6 HIGH OUTPUT 24V MPI ENGINE. 3.5L V6 SOHC 24 VALVE ENGINE. 3.5L V6 SOHC 24V ENGINE. Transmissions: 4-SPEED AUTOMATIC TRANSMISSION.

5

6503931 - Automatic Transaxle 4 Speed: Pan Head Lock Screw And Washer for Mopar Image

Pan Head Lock Screw And Washer

Mopar

Mopar

Notes: Engines: 2.7L V6 24V W/ACTIVE INTAKE ENGINE. 2.7L V6 DOHC 24 VALVE MPI ENGINE. 3.2L V6 SOHC 24 VALVE MPI ENGINE. 3.5L V6 HIGH OUTPUT 24V MPI ENGINE. 3.5L V6 SOHC 24 VALVE ENGINE. 3.5L V6 SOHC 24V ENGINE. Transmissions: 4-SPEED AUTOMATIC TRANSMISSION.

Description: M5x.08x22.50

6

6503385 - Automatic Transaxle 4 Speed: Differential Cover Bolt for Mopar Image

Differential Cover Bolt

Mopar

Mopar

Notes: Engines: 2.7L V6 24V W/ACTIVE INTAKE ENGINE. 2.7L V6 DOHC 24 VALVE MPI ENGINE. 3.2L V6 SOHC 24 VALVE MPI ENGINE. 3.5L V6 HIGH OUTPUT 24V MPI ENGINE. 3.5L V6 SOHC 24 VALVE ENGINE. 3.5L V6 SOHC 24V ENGINE. Transmissions: 4-SPEED AUTOMATIC TRANSMISSION.

8

4659477 - Automatic Transaxle 4 Speed: Transaxle Rear Cover for Mopar Image

Transaxle Rear Cover

Mopar

Mopar

Notes: Engines: 2.7L V6 24V W/ACTIVE INTAKE ENGINE. 2.7L V6 DOHC 24 VALVE MPI ENGINE. 3.2L V6 SOHC 24 VALVE MPI ENGINE. 3.5L V6 HIGH OUTPUT 24V MPI ENGINE. 3.5L V6 SOHC 24 VALVE ENGINE. 3.5L V6 SOHC 24V ENGINE. Transmissions: 4-SPEED AUTOMATIC TRANSMISSION.

Description: Chain / Gear

9

6501819 - Automatic Transaxle 4 Speed: Pan Head Screw And Washer for Mopar Image

Pan Head Screw And Washer

Mopar

Mopar

Notes: Engines: 2.7L V6 24V W/ACTIVE INTAKE ENGINE. 2.7L V6 DOHC 24 VALVE MPI ENGINE. 3.2L V6 SOHC 24 VALVE MPI ENGINE. 3.5L V6 HIGH OUTPUT 24V MPI ENGINE. 3.5L V6 SOHC 24 VALVE ENGINE. 3.5L V6 SOHC 24V ENGINE. Transmissions: 4-SPEED AUTOMATIC TRANSMISSION.

Description: M5x0.8x11.00

Not For Sale

Not For Sale

10

4567388 - Automatic Transaxle 4 Speed: Sump Baffle for Mopar Image

Sump Baffle

Mopar

Mopar

Notes: Engines: 2.7L V6 24V W/ACTIVE INTAKE ENGINE. 2.7L V6 DOHC 24 VALVE MPI ENGINE. 3.2L V6 SOHC 24 VALVE MPI ENGINE. 3.5L V6 HIGH OUTPUT 24V MPI ENGINE. 3.5L V6 SOHC 24 VALVE ENGINE. 3.5L V6 SOHC 24V ENGINE. Transmissions: 4-SPEED AUTOMATIC TRANSMISSION.

12

4539904 - Automatic Transaxle 4 Speed: Chain Oiler Tube for Mopar Image

Chain Oiler Tube

Mopar

Mopar

Notes: Engines: 2.7L V6 24V W/ACTIVE INTAKE ENGINE. 2.7L V6 DOHC 24 VALVE MPI ENGINE. 3.2L V6 SOHC 24 VALVE MPI ENGINE. 3.5L V6 HIGH OUTPUT 24V MPI ENGINE. 3.5L V6 SOHC 24 VALVE ENGINE. 3.5L V6 SOHC 24V ENGINE. Transmissions: 4-SPEED AUTOMATIC TRANSMISSION.

13

4567312 - Automatic Transaxle 4 Speed: Transaxle Case Plug for Mopar Image

Transmission Case Plug

Mopar

Mopar

Notes: Engines: 2.7L V6 24V W/ACTIVE INTAKE ENGINE. 2.7L V6 DOHC 24 VALVE MPI ENGINE. 3.2L V6 SOHC 24 VALVE MPI ENGINE. 3.5L V6 HIGH OUTPUT 24V MPI ENGINE. 3.5L V6 SOHC 24 VALVE ENGINE. 3.5L V6 SOHC 24V ENGINE. Transmissions: 4-SPEED AUTOMATIC TRANSMISSION.

Description: Located near the top, on the side of the case

MSRP $7.20

$5.08

MSRP $7.20

$5.08

14

4800879 - Automatic Transaxle 4 Speed: Transmission Output Speed Sensor for Mopar Image

Transmission Output Speed Sensor

Mopar

Mopar

Notes: Engines: 2.7L V6 24V W/ACTIVE INTAKE ENGINE. 2.7L V6 DOHC 24 VALVE MPI ENGINE. 3.2L V6 SOHC 24 VALVE MPI ENGINE. 3.5L V6 HIGH OUTPUT 24V MPI ENGINE. 3.5L V6 SOHC 24 VALVE ENGINE. 3.5L V6 SOHC 24V ENGINE. Transmissions: 4-SPEED AUTOMATIC TRANSMISSION.

Description: Input and Output.

Not For Sale

Not For Sale

16

6033879 - Automatic Transaxle 4 Speed: Inverted Flare Nut for Mopar Image

Inverted Flare Nut

Mopar

Mopar

Notes: Engines: 2.7L V6 24V W/ACTIVE INTAKE ENGINE. 2.7L V6 DOHC 24 VALVE MPI ENGINE. 3.2L V6 SOHC 24 VALVE MPI ENGINE. 3.5L V6 HIGH OUTPUT 24V MPI ENGINE. 3.5L V6 SOHC 24 VALVE ENGINE. 3.5L V6 SOHC 24V ENGINE. Transmissions: 4-SPEED AUTOMATIC TRANSMISSION.

Description: .62-18

MSRP $15.85

$11.37

MSRP $15.85

$11.37

17

4800878 - Automatic Transaxle 4 Speed: Transmission Input Speed Sensor for Mopar Image

Transmission Input Speed Sensor

Mopar

Mopar

Notes: Engines: 2.7L V6 24V W/ACTIVE INTAKE ENGINE. 2.7L V6 DOHC 24 VALVE MPI ENGINE. 3.2L V6 SOHC 24 VALVE MPI ENGINE. 3.5L V6 HIGH OUTPUT 24V MPI ENGINE. 3.5L V6 SOHC 24 VALVE ENGINE. 3.5L V6 SOHC 24V ENGINE. Transmissions: 4-SPEED AUTOMATIC TRANSMISSION.

Description: Fwd.

Not For Sale

Not For Sale

19

4539762 - Automatic Transaxle 4 Speed: Transmission Oil Pan for Mopar Image

Transmission Oil Pan

Mopar

Mopar

Notes: Engines: 2.7L V6 24V W/ACTIVE INTAKE ENGINE. 2.7L V6 DOHC 24 VALVE MPI ENGINE. 3.2L V6 SOHC 24 VALVE MPI ENGINE. 3.5L V6 HIGH OUTPUT 24V MPI ENGINE. 3.5L V6 SOHC 24 VALVE ENGINE. 3.5L V6 SOHC 24V ENGINE. Transmissions: 4-SPEED AUTOMATIC TRANSMISSION.

20

68207789AA - Automatic Transaxle 4 Speed: Transmission Magnet for Mopar Image

Valve Body Gasket And Seal Package

Mopar

Mopar

Notes: Engines: 2.7L V6 24V W/ACTIVE INTAKE ENGINE. 2.7L V6 DOHC 24 VALVE MPI ENGINE. 3.2L V6 SOHC 24 VALVE MPI ENGINE. 3.5L V6 HIGH OUTPUT 24V MPI ENGINE. 3.5L V6 SOHC 24 VALVE ENGINE. 3.5L V6 SOHC 24V ENGINE. Transmissions: 4-SPEED AUTOMATIC TRANSMISSION.

Description: Can be used with Oil Pans 52852912AA and 52852912AB

Not For Sale

Not For Sale

21

6501474 - Automatic Transaxle 4 Speed: Hex Head Bolt for Mopar Image

Hex Flange Head Bolt

Mopar

Mopar

Notes: Engines: 2.7L V6 24V W/ACTIVE INTAKE ENGINE. 2.7L V6 DOHC 24 VALVE MPI ENGINE. 3.2L V6 SOHC 24 VALVE MPI ENGINE. 3.5L V6 HIGH OUTPUT 24V MPI ENGINE. 3.5L V6 SOHC 24 VALVE ENGINE. 3.5L V6 SOHC 24V ENGINE. Transmissions: 4-SPEED AUTOMATIC TRANSMISSION.

Description: M8x1.25x16

Not For Sale

Not For Sale

22

6036053AA - Automatic Transaxle 4 Speed: Pressure Check Plug for Mopar Image

Pressure Check Plug

Mopar

Mopar

Notes: Engines: 2.7L V6 24V W/ACTIVE INTAKE ENGINE. 2.7L V6 DOHC 24 VALVE MPI ENGINE. 3.2L V6 SOHC 24 VALVE MPI ENGINE. 3.5L V6 HIGH OUTPUT 24V MPI ENGINE. 3.5L V6 SOHC 24 VALVE ENGINE. 3.5L V6 SOHC 24V ENGINE. Transmissions: 4-SPEED AUTOMATIC TRANSMISSION.

Description: Fwd.

Not For Sale

Not For Sale

23

6502482 - Automatic Transaxle 4 Speed: Snap Ring for Mopar Image

Snap Ring

Mopar

Mopar

Notes: Engines: 2.7L V6 24V W/ACTIVE INTAKE ENGINE. 2.7L V6 DOHC 24 VALVE MPI ENGINE. 3.2L V6 SOHC 24 VALVE MPI ENGINE. 3.5L V6 HIGH OUTPUT 24V MPI ENGINE. 3.5L V6 SOHC 24 VALVE ENGINE. 3.5L V6 SOHC 24V ENGINE. Transmissions: 4-SPEED AUTOMATIC TRANSMISSION.

Description: Stub Shaft Ball Bearing, 2.634`` O.D., .078`` Thk.

24

6502453 - Automatic Transaxle 4 Speed: Differential Adjuster -inner O Ring for Mopar Image

Differential Adjuster -inner O Ring

Mopar

Mopar

Notes: Engines: 2.7L V6 24V W/ACTIVE INTAKE ENGINE. 2.7L V6 DOHC 24 VALVE MPI ENGINE. 3.2L V6 SOHC 24 VALVE MPI ENGINE. 3.5L V6 HIGH OUTPUT 24V MPI ENGINE. 3.5L V6 SOHC 24 VALVE ENGINE. 3.5L V6 SOHC 24V ENGINE. Transmissions: 4-SPEED AUTOMATIC TRANSMISSION.

Description: ATX

25

4659946AB - Automatic Transaxle 4 Speed: Cooler Bypass Valve for Mopar Image

Cooler Bypass Valve

Mopar

Mopar

Notes: Engines: 2.7L V6 24V W/ACTIVE INTAKE ENGINE. 2.7L V6 DOHC 24 VALVE MPI ENGINE. 3.2L V6 SOHC 24 VALVE MPI ENGINE. 3.5L V6 HIGH OUTPUT 24V MPI ENGINE. 3.5L V6 SOHC 24 VALVE ENGINE. 3.5L V6 SOHC 24V ENGINE. Transmissions: 4-SPEED AUTOMATIC TRANSMISSION.

Not For Sale

Not For Sale

26

4883525AA - Automatic Transaxle 4 Speed: Transaxle Case for Mopar Image

Transaxle Case

Mopar

Mopar

Notes: Engines: 2.7L V6 24V W/ACTIVE INTAKE ENGINE. 2.7L V6 DOHC 24 VALVE MPI ENGINE. 3.2L V6 SOHC 24 VALVE MPI ENGINE. 3.5L V6 HIGH OUTPUT 24V MPI ENGINE. 3.5L V6 SOHC 24 VALVE ENGINE. 3.5L V6 SOHC 24V ENGINE. Transmissions: 4-SPEED AUTOMATIC TRANSMISSION.

28

6503005 - Automatic Transaxle 4 Speed: Bolt for Mopar Image

Bolt

Mopar

Mopar

Notes: Engines: 2.7L V6 24V W/ACTIVE INTAKE ENGINE. 2.7L V6 DOHC 24 VALVE MPI ENGINE. 3.2L V6 SOHC 24 VALVE MPI ENGINE. 3.5L V6 HIGH OUTPUT 24V MPI ENGINE. 3.5L V6 SOHC 24 VALVE ENGINE. 3.5L V6 SOHC 24V ENGINE. Transmissions: 4-SPEED AUTOMATIC TRANSMISSION.

29

4593022 - Automatic Transaxle 4 Speed: Differential Bearing Bracket for Mopar Image

Differential Bearing Bracket

Mopar

Mopar

Notes: Engines: 2.7L V6 24V W/ACTIVE INTAKE ENGINE. 2.7L V6 DOHC 24 VALVE MPI ENGINE. 3.2L V6 SOHC 24 VALVE MPI ENGINE. 3.5L V6 HIGH OUTPUT 24V MPI ENGINE. 3.5L V6 SOHC 24 VALVE ENGINE. 3.5L V6 SOHC 24V ENGINE. Transmissions: 4-SPEED AUTOMATIC TRANSMISSION.

30

4800175AA - Automatic Transaxle 4 Speed: Differential Baffle for Mopar Image

Differential Baffle

Mopar

Mopar

Notes: Engines: 2.7L V6 24V W/ACTIVE INTAKE ENGINE. 2.7L V6 DOHC 24 VALVE MPI ENGINE. 3.2L V6 SOHC 24 VALVE MPI ENGINE. 3.5L V6 HIGH OUTPUT 24V MPI ENGINE. 3.5L V6 SOHC 24 VALVE ENGINE. 3.5L V6 SOHC 24V ENGINE. Transmissions: 4-SPEED AUTOMATIC TRANSMISSION.

31

4539890 - Automatic Transaxle 4 Speed: Differential Bearing Adjuster for Mopar Image

Differential Bearing Adjuster

Mopar

Mopar

Notes: Engines: 2.7L V6 24V W/ACTIVE INTAKE ENGINE. 2.7L V6 DOHC 24 VALVE MPI ENGINE. 3.2L V6 SOHC 24 VALVE MPI ENGINE. 3.5L V6 HIGH OUTPUT 24V MPI ENGINE. 3.5L V6 SOHC 24 VALVE ENGINE. 3.5L V6 SOHC 24V ENGINE. Transmissions: 4-SPEED AUTOMATIC TRANSMISSION.

32

6502797 - Automatic Transaxle 4 Speed: Differential Adjuster -inner O Ring for Mopar Image

Differential Adjuster -inner O Ring

Mopar

Mopar

Notes: Engines: 2.7L V6 24V W/ACTIVE INTAKE ENGINE. 2.7L V6 DOHC 24 VALVE MPI ENGINE. 3.2L V6 SOHC 24 VALVE MPI ENGINE. 3.5L V6 HIGH OUTPUT 24V MPI ENGINE. 3.5L V6 SOHC 24 VALVE ENGINE. 3.5L V6 SOHC 24V ENGINE. Transmissions: 4-SPEED AUTOMATIC TRANSMISSION.

Description: ATX

33

4539796 - Automatic Transaxle 4 Speed: Differential Case Seal for Mopar Image

Differential Case Seal

Mopar

Mopar

Notes: Engines: 2.7L V6 24V W/ACTIVE INTAKE ENGINE. 2.7L V6 DOHC 24 VALVE MPI ENGINE. 3.2L V6 SOHC 24 VALVE MPI ENGINE. 3.5L V6 HIGH OUTPUT 24V MPI ENGINE. 3.5L V6 SOHC 24 VALVE ENGINE. 3.5L V6 SOHC 24V ENGINE. Transmissions: 4-SPEED AUTOMATIC TRANSMISSION.

34

4567036 - Automatic Transaxle 4 Speed: Transaxle Differential Cover for Mopar Image

Transaxle Differential Cover

Mopar

Mopar

Notes: Engines: 2.7L V6 24V W/ACTIVE INTAKE ENGINE. 2.7L V6 DOHC 24 VALVE MPI ENGINE. 3.2L V6 SOHC 24 VALVE MPI ENGINE. 3.5L V6 HIGH OUTPUT 24V MPI ENGINE. 3.5L V6 SOHC 24 VALVE ENGINE. 3.5L V6 SOHC 24V ENGINE. Transmissions: 4-SPEED AUTOMATIC TRANSMISSION.

35

6036172AA - Automatic Transaxle 4 Speed: Oil Fill Plug for Mopar Image

Oil Fill Plug

Mopar

Mopar

Notes: Engines: 2.7L V6 24V W/ACTIVE INTAKE ENGINE. 2.7L V6 DOHC 24 VALVE MPI ENGINE. 3.2L V6 SOHC 24 VALVE MPI ENGINE. 3.5L V6 HIGH OUTPUT 24V MPI ENGINE. 3.5L V6 SOHC 24 VALVE ENGINE. 3.5L V6 SOHC 24V ENGINE. Transmissions: 4-SPEED AUTOMATIC TRANSMISSION.

36

4539776 - Automatic Transaxle 4 Speed: Differential Bearing Adjuster for Mopar Image

Differential Bearing Adjuster

Mopar

Mopar

Notes: Engines: 2.7L V6 24V W/ACTIVE INTAKE ENGINE. 2.7L V6 DOHC 24 VALVE MPI ENGINE. 3.2L V6 SOHC 24 VALVE MPI ENGINE. 3.5L V6 HIGH OUTPUT 24V MPI ENGINE. 3.5L V6 SOHC 24 VALVE ENGINE. 3.5L V6 SOHC 24V ENGINE. Transmissions: 4-SPEED AUTOMATIC TRANSMISSION.

37

6502452 - Automatic Transaxle 4 Speed: Differential Adjuster -outer O Ring for Mopar Image

Differential Adjuster -outer O Ring

Mopar

Mopar

Notes: Engines: 2.7L V6 24V W/ACTIVE INTAKE ENGINE. 2.7L V6 DOHC 24 VALVE MPI ENGINE. 3.2L V6 SOHC 24 VALVE MPI ENGINE. 3.5L V6 HIGH OUTPUT 24V MPI ENGINE. 3.5L V6 SOHC 24 VALVE ENGINE. 3.5L V6 SOHC 24V ENGINE. Transmissions: 4-SPEED AUTOMATIC TRANSMISSION.

Description: ATX

38

4539891 - Automatic Transaxle 4 Speed: Differential Case Seal for Mopar Image

Differential Case Seal

Mopar

Mopar

Notes: Engines: 2.7L V6 24V W/ACTIVE INTAKE ENGINE. 2.7L V6 DOHC 24 VALVE MPI ENGINE. 3.2L V6 SOHC 24 VALVE MPI ENGINE. 3.5L V6 HIGH OUTPUT 24V MPI ENGINE. 3.5L V6 SOHC 24 VALVE ENGINE. 3.5L V6 SOHC 24V ENGINE. Transmissions: 4-SPEED AUTOMATIC TRANSMISSION.

39

4539760 - Automatic Transaxle 4 Speed: Differential Bearing Bracket for Mopar Image

Differential Bearing Bracket

Mopar

Mopar

Notes: Engines: 2.7L V6 24V W/ACTIVE INTAKE ENGINE. 2.7L V6 DOHC 24 VALVE MPI ENGINE. 3.2L V6 SOHC 24 VALVE MPI ENGINE. 3.5L V6 HIGH OUTPUT 24V MPI ENGINE. 3.5L V6 SOHC 24 VALVE ENGINE. 3.5L V6 SOHC 24V ENGINE. Transmissions: 4-SPEED AUTOMATIC TRANSMISSION.

40

3723569 - Automatic Transaxle 4 Speed: Differential Side Bearing Cup for Mopar Image

Differential Side Cup

Mopar

Mopar

Notes: Engines: 2.7L V6 24V W/ACTIVE INTAKE ENGINE. 2.7L V6 DOHC 24 VALVE MPI ENGINE. 3.2L V6 SOHC 24 VALVE MPI ENGINE. 3.5L V6 HIGH OUTPUT 24V MPI ENGINE. 3.5L V6 SOHC 24 VALVE ENGINE. 3.5L V6 SOHC 24V ENGINE. Transmissions: 4-SPEED AUTOMATIC TRANSMISSION.

Not For Sale

Not For Sale

41

4531202 - Automatic Transaxle 4 Speed: Oil Cooler Hose Connector for Mopar Image

Oil Cooler Hose Connector

Mopar

Mopar

Notes: Engines: 2.7L V6 24V W/ACTIVE INTAKE ENGINE. 2.7L V6 DOHC 24 VALVE MPI ENGINE. 3.2L V6 SOHC 24 VALVE MPI ENGINE. 3.5L V6 HIGH OUTPUT 24V MPI ENGINE. 3.5L V6 SOHC 24 VALVE ENGINE. 3.5L V6 SOHC 24V ENGINE. Transmissions: 4-SPEED AUTOMATIC TRANSMISSION.

Description: Trans Vent Hose.

42

4213328 - Automatic Transaxle 4 Speed: Cap Vent for Mopar Image

Cap Vent

Mopar

Mopar

Notes: Engines: 2.7L V6 24V W/ACTIVE INTAKE ENGINE. 2.7L V6 DOHC 24 VALVE MPI ENGINE. 3.2L V6 SOHC 24 VALVE MPI ENGINE. 3.5L V6 HIGH OUTPUT 24V MPI ENGINE. 3.5L V6 SOHC 24 VALVE ENGINE. 3.5L V6 SOHC 24V ENGINE. Transmissions: 4-SPEED AUTOMATIC TRANSMISSION.

Description: Vent to Breather Tube

43

6503236 - Automatic Transaxle 4 Speed: Hex Head Bolt for Mopar Image

Hex Head Bolt

Mopar

Mopar

Notes: Engines: 2.7L V6 24V W/ACTIVE INTAKE ENGINE. 2.7L V6 DOHC 24 VALVE MPI ENGINE. 3.2L V6 SOHC 24 VALVE MPI ENGINE. 3.5L V6 HIGH OUTPUT 24V MPI ENGINE. 3.5L V6 SOHC 24 VALVE ENGINE. 3.5L V6 SOHC 24V ENGINE. Transmissions: 4-SPEED AUTOMATIC TRANSMISSION.

Description: M8x1.25x28.50

44

4593517 - Automatic Transaxle 4 Speed: Vent Tube Clamp for Mopar Image

Vent Tube Clamp

Mopar

Mopar

Notes: Engines: 2.7L V6 24V W/ACTIVE INTAKE ENGINE. 2.7L V6 DOHC 24 VALVE MPI ENGINE. 3.2L V6 SOHC 24 VALVE MPI ENGINE. 3.5L V6 HIGH OUTPUT 24V MPI ENGINE. 3.5L V6 SOHC 24 VALVE ENGINE. 3.5L V6 SOHC 24V ENGINE. Transmissions: 4-SPEED AUTOMATIC TRANSMISSION.

45

4567310 - Automatic Transaxle 4 Speed: Transaxle Case Plug for Mopar Image

Transaxle Case Plug

Mopar

Mopar

Notes: Engines: 2.7L V6 24V W/ACTIVE INTAKE ENGINE. 2.7L V6 DOHC 24 VALVE MPI ENGINE. 3.2L V6 SOHC 24 VALVE MPI ENGINE. 3.5L V6 HIGH OUTPUT 24V MPI ENGINE. 3.5L V6 SOHC 24 VALVE ENGINE. 3.5L V6 SOHC 24V ENGINE. Transmissions: 4-SPEED AUTOMATIC TRANSMISSION.

Description: 2.00 Diameter

Case and Extension for 2002 Chrysler Concorde #1

10

12

2

3

4

7

8

9

No.

Part # / Description / Price

Price

N/A

6511860AA - Automatic Transaxle 4 Speed: Hex Head Screw And Washer for Mopar Image

Hex Head Bolt And Washer

Mopar

Mopar

Notes: Engines: 2.7L V6 24V W/ACTIVE INTAKE ENGINE.

Description: M6X1.00X40.00

Not For Sale

Not For Sale

N/A

6101694 - Automatic Transaxle 4 Speed: Nut for Mopar Image

Nut, Mounting

Mopar

Mopar

Description: M6x1.00. Upper Oil Pan To Timing Case Cover

Not For Sale

Not For Sale

2

4578168AA - Automatic Transaxle 4 Speed: Gear Selector Cable for Mopar Image

Gear Selector Cable

Mopar

Mopar

Description: Full Length Floor Console

2

4578168AB - Automatic Transaxle 4 Speed: Gear Selector Cable for Mopar Image

Gear Selector Cable

Mopar

Mopar

Description: Full Length Floor Console

2

4578169AB - Automatic Transaxle 4 Speed: Gear Selector Cable for Mopar Image

Gear Selector Cable

Mopar

Mopar

Description: Without Full Length Floor Console

3

6101467 - Automatic Transaxle 4 Speed: Hex Flange Nut for Mopar Image

Hex Flange Nut

Mopar

Mopar

Notes: Engines: 2.7L V6 24V W/ACTIVE INTAKE ENGINE. 2.7L V6 DOHC 24 VALVE MPI ENGINE. 3.2L V6 SOHC 24 VALVE MPI ENGINE. 3.5L V6 HIGH OUTPUT 24V MPI ENGINE. 3.5L V6 SOHC 24 VALVE ENGINE. 3.5L V6 SOHC 24V ENGINE.

Description: M8x1.25. Lateral Brace to Power Takeoff Unit

4

4670322 - Automatic Transaxle 4 Speed: Manual Control Lever for Mopar Image

Manual Control Lever

Mopar

Mopar

7

4759995AA - Automatic Transaxle 4 Speed: Transmission Wiring for Mopar Image

Transmission Wiring

Mopar

Mopar

Notes: Engines: 2.7L V6 DOHC 24 VALVE MPI ENGINE. 3.5L V6 HIGH OUTPUT 24V MPI ENGINE. 3.5L V6 SOHC 24 VALVE ENGINE. 3.5L V6 SOHC 24V ENGINE. Transmissions: 4-SPEED AUTOMATIC TRANSMISSION.

8

4593199AB - Automatic Transaxle 4 Speed: Transmission Oil Filler Tube for Mopar Image

Transmission Oil Filler Tube

Mopar

Mopar

9

6030608 - Automatic Transaxle 4 Speed: Oil Filler Tube Seal for Mopar Image

Oil Filler Tube Seal

Mopar

Mopar

Description: oil filler tube seal: This seal is designed to create a tight seal around the oil filler tube.

Not For Sale

Not For Sale

10

4765014AD - Automatic Transaxle 4 Speed: Transmission Fluid Level Indicator for Mopar Image

Transmission Fluid Level Indicator

Mopar

Mopar

12

6507424AA - Automatic Transaxle 4 Speed: Double Ended Stud for Mopar Image

Double Ended Stud, Engine Block To Transmission

Mopar

Mopar

Description: [M12x1.75/8x1.25x80.0]
