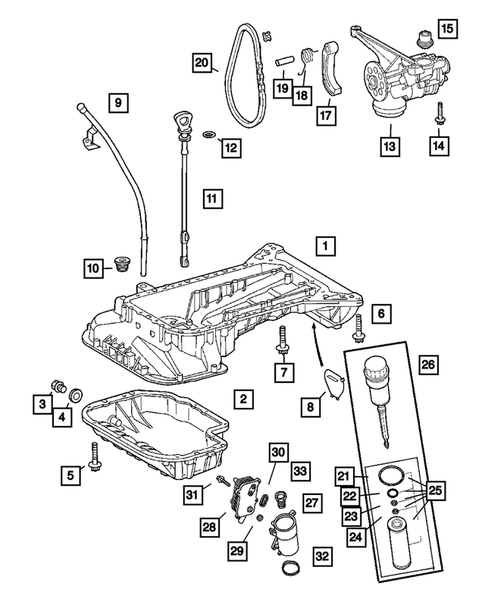

Engine Oiling for 2005 Chrysler Crossfire
No.
Part # / Description / Price
Price
N/A
![5080119AA - Engine 3.2L SOHC 18 Valve Supercharged V-6 [EGZ]: Snap Ring for Mopar Image](http://cdn-illustrations.revolutionparts.io/strapr1/d5f11c8f7a74f276d8387e5d91093b86/6ce13a48d28f8b5eb355055acb511a13.png "5080119AA - Engine 3.2L SOHC 18 Valve Supercharged V-6 [EGZ]: Snap Ring for Mopar")
Snap Ring
Mopar
Mopar Notes: Engines: 3.2L V6 SOHC 18 VALVE ENGINE. 3.2L V6 SUPERCHARGED ENGINE. Transmissions: 5-SPD AUTO W5A330 TRANSMISSION. 5-SPEED AUTO W5A580 TRANSMISSION. 6-SPEED MLGU MANUAL TRANSMISSION.
1
![5097784AA - Engine 3.2L SOHC 18 Valve Supercharged V-6 [EGZ]: Oil Pan for Mopar Image](http://cdn-illustrations.revolutionparts.io/strapr1/2814739bbe2fee43b03d8a3017f53afb/de06e1d22563146b06e31b5aee22a6d1.png "5097784AA - Engine 3.2L SOHC 18 Valve Supercharged V-6 [EGZ]: Oil Pan for Mopar")
Oil Pan, Upper Mopar
Mopar Notes: Engines: 3.2L V6 SOHC 18 VALVE ENGINE. 3.2L V6 SUPERCHARGED ENGINE. Transmissions: 5-SPD AUTO W5A330 TRANSMISSION. 5-SPEED AUTO W5A580 TRANSMISSION. 6-SPEED MLGU MANUAL TRANSMISSION.
2
![5101189AA - Engine 3.2L SOHC 18 Valve Supercharged V-6 [EGZ]: Oil Pan for Mopar Image](http://cdn-product-images.revolutionparts.io/assets/234d0040bfde66f35736ad99d70cab31.webp "5101189AA - Engine 3.2L SOHC 18 Valve Supercharged V-6 [EGZ]: Oil Pan for Mopar")
Oil Pan, Lower Mopar
Mopar Notes: Engines: 3.2L V6 SOHC 18 VALVE ENGINE. 3.2L V6 SUPERCHARGED ENGINE. Transmissions: 5-SPD AUTO W5A330 TRANSMISSION. 5-SPEED AUTO W5A580 TRANSMISSION. 6-SPEED MLGU MANUAL TRANSMISSION.
3
![5073945AB - Engine 3.2L SOHC 18 Valve Supercharged V-6 [EGZ]: Oil Drain Plug for Mopar Image](http://cdn-product-images.revolutionparts.io/assets/9719023c8b53bd3fa79dd5bb238572fe.webp "5073945AB - Engine 3.2L SOHC 18 Valve Supercharged V-6 [EGZ]: Oil Drain Plug for Mopar")
Oil Drain Plug Mopar
Mopar Notes: Engines: 3.2L V6 SOHC 18 VALVE ENGINE. 3.2L V6 SUPERCHARGED ENGINE. Transmissions: 5-SPD AUTO W5A330 TRANSMISSION. 5-SPEED AUTO W5A580 TRANSMISSION. 6-SPEED MLGU MANUAL TRANSMISSION.
4
![5073946AA - Engine 3.2L SOHC 18 Valve Supercharged V-6 [EGZ]: Drain Plug Gasket for Mopar Image](http://cdn-product-images.revolutionparts.io/assets/48e7105fe1999d4b6052590161fd9df4.webp "5073946AA - Engine 3.2L SOHC 18 Valve Supercharged V-6 [EGZ]: Drain Plug Gasket for Mopar")
Drain Plug Gasket Mopar
Mopar Notes: Engines: 3.2L V6 SOHC 18 VALVE ENGINE. 3.2L V6 SUPERCHARGED ENGINE. Transmissions: 5-SPD AUTO W5A330 TRANSMISSION. 5-SPEED AUTO W5A580 TRANSMISSION. 6-SPEED MLGU MANUAL TRANSMISSION.
5
6 Lobe External Head Bolt, Mounting Mopar
Mopar Notes: Engines: 3.2L V6 SOHC 18 VALVE ENGINE. 3.2L V6 SUPERCHARGED ENGINE. Transmissions: 5-SPD AUTO W5A330 TRANSMISSION. 5-SPEED AUTO W5A580 TRANSMISSION. 6-SPEED MLGU MANUAL TRANSMISSION.
Description: M6x1.0x23.0. Upper Intake Plenum To Lower Intake Manifold
6
Torx Socket Head Bolt, Mounting Mopar
Mopar Notes: Engines: 3.2L V6 SOHC 18 VALVE ENGINE. 3.2L V6 SUPERCHARGED ENGINE. Transmissions: 5-SPD AUTO W5A330 TRANSMISSION. 5-SPEED AUTO W5A580 TRANSMISSION. 6-SPEED MLGU MANUAL TRANSMISSION.
Description: M6X1.00X20.00. Oil Pan
7
Screw Mopar
Mopar Notes: Engines: 3.2L V6 SOHC 18 VALVE ENGINE. 3.2L V6 SUPERCHARGED ENGINE. Transmissions: 5-SPD AUTO W5A330 TRANSMISSION. 5-SPEED AUTO W5A580 TRANSMISSION. 6-SPEED MLGU MANUAL TRANSMISSION.
Description: [M6x90] Oil Pan To Block
7
Screw, Mounting Mopar
Mopar Notes: Engines: 3.2L V6 SOHC 18 VALVE ENGINE. 3.2L V6 SUPERCHARGED ENGINE. Transmissions: 5-SPD AUTO W5A330 TRANSMISSION. 5-SPEED AUTO W5A580 TRANSMISSION. 6-SPEED MLGU MANUAL TRANSMISSION.
Description: [M6X1.00X40.00]. Oil Pan
8
Cover Mopar
Mopar Notes: Engines: 3.2L V6 SOHC 18 VALVE ENGINE. 3.2L V6 SUPERCHARGED ENGINE. Transmissions: 5-SPD AUTO W5A330 TRANSMISSION. 5-SPEED AUTO W5A580 TRANSMISSION. 6-SPEED MLGU MANUAL TRANSMISSION.
Description: Oil Pan Mounting Hole
9
Engine Oil Indicator Tube Mopar
Mopar Notes: Engines: 3.2L V6 SUPERCHARGED ENGINE. Transmissions: 5-SPEED AUTO W5A580 TRANSMISSION.
10
![5096486AB - Engine 3.2L SOHC 18 Valve Supercharged V-6 [EGZ]: Seal for Mopar Image](http://cdn-product-images.revolutionparts.io/assets/70c42984d690a656f6d97a7b61db2c41.webp "5096486AB - Engine 3.2L SOHC 18 Valve Supercharged V-6 [EGZ]: Seal for Mopar")
Gasket Mopar
Mopar Notes: Engines: 3.2L V6 SOHC 18 VALVE ENGINE. 3.2L V6 SUPERCHARGED ENGINE. Transmissions: 5-SPD AUTO W5A330 TRANSMISSION. 5-SPEED AUTO W5A580 TRANSMISSION. 6-SPEED MLGU MANUAL TRANSMISSION.
Description: Oil Level Indicator Tube Grommit And Seal
11
Engine Oil Level Indicator Mopar
Mopar Notes: Engines: 3.2L V6 SOHC 18 VALVE ENGINE. 3.2L V6 SUPERCHARGED ENGINE. Transmissions: 5-SPD AUTO W5A330 TRANSMISSION. 5-SPEED AUTO W5A580 TRANSMISSION. 6-SPEED MLGU MANUAL TRANSMISSION.
12
![5073943AA - Engine 3.2L SOHC 18 Valve Supercharged V-6 [EGZ]: Engine Oil Level Tube O Ring for Mopar Image](http://cdn-product-images.revolutionparts.io/assets/ee40f71ea82c6e9723b3b7dea3255db2.webp "5073943AA - Engine 3.2L SOHC 18 Valve Supercharged V-6 [EGZ]: Engine Oil Level Tube O Ring for Mopar")
Engine Oil Level Tube O Ring Mopar
Mopar Notes: Engines: 3.2L V6 SOHC 18 VALVE ENGINE. 3.2L V6 SUPERCHARGED ENGINE. Transmissions: 5-SPD AUTO W5A330 TRANSMISSION. 5-SPEED AUTO W5A580 TRANSMISSION. 6-SPEED MLGU MANUAL TRANSMISSION.
Description: Indicator Seal
13
Engine Oil Pump Mopar
Mopar Notes: Engines: 3.2L V6 SUPERCHARGED ENGINE. Transmissions: 5-SPEED AUTO W5A580 TRANSMISSION.
14
Bolt Bolt Mopar
Mopar Notes: Engines: 3.2L V6 SOHC 18 VALVE ENGINE. 3.2L V6 SUPERCHARGED ENGINE. Transmissions: 5-SPD AUTO W5A330 TRANSMISSION. 5-SPEED AUTO W5A580 TRANSMISSION. 6-SPEED MLGU MANUAL TRANSMISSION.
Description: Oil Pump Mounting
15
Pressure Relief Valve Mopar
Mopar Notes: Engines: 3.2L V6 SOHC 18 VALVE ENGINE. 3.2L V6 SUPERCHARGED ENGINE. Transmissions: 5-SPD AUTO W5A330 TRANSMISSION. 5-SPEED AUTO W5A580 TRANSMISSION. 6-SPEED MLGU MANUAL TRANSMISSION.
Description: Pressure Relief Valve
17
Tensioner Arm Mopar
Mopar Notes: Engines: 3.2L V6 SOHC 18 VALVE ENGINE. 3.2L V6 SUPERCHARGED ENGINE. Transmissions: 5-SPD AUTO W5A330 TRANSMISSION. 5-SPEED AUTO W5A580 TRANSMISSION. 6-SPEED MLGU MANUAL TRANSMISSION.
Description: Oil Pump Chain Tensioner
18
Spring Spring Mopar
Mopar Notes: Engines: 3.2L V6 SOHC 18 VALVE ENGINE. 3.2L V6 SUPERCHARGED ENGINE. Transmissions: 5-SPD AUTO W5A330 TRANSMISSION. 5-SPEED AUTO W5A580 TRANSMISSION. 6-SPEED MLGU MANUAL TRANSMISSION.
Description: Oil Pump Tensioner
19
Pivot Bolt Mopar
Mopar Notes: Engines: 3.2L V6 SOHC 18 VALVE ENGINE. 3.2L V6 SUPERCHARGED ENGINE. Transmissions: 5-SPD AUTO W5A330 TRANSMISSION. 5-SPEED AUTO W5A580 TRANSMISSION. 6-SPEED MLGU MANUAL TRANSMISSION.
Description: Oil Pump Tensioner
20
Pump Drive Chain Mopar
Mopar Notes: Engines: 3.2L V6 SUPERCHARGED ENGINE. Transmissions: 5-SPEED AUTO W5A580 TRANSMISSION.
21
![5080242AA - Engine 3.2L SOHC 18 Valve Supercharged V-6 [EGZ]: O Ring for Mopar Image](http://cdn-product-images.revolutionparts.io/assets/be218b98d7050c9e2c094594ebb8bb23.webp "5080242AA - Engine 3.2L SOHC 18 Valve Supercharged V-6 [EGZ]: O Ring for Mopar")
O Ring Mopar
Mopar Notes: Engines: 3.2L V6 SOHC 18 VALVE ENGINE. 3.2L V6 SUPERCHARGED ENGINE. Transmissions: 5-SPD AUTO W5A330 TRANSMISSION. 5-SPEED AUTO W5A580 TRANSMISSION. 6-SPEED MLGU MANUAL TRANSMISSION.
22
O Ring Mopar
Mopar Notes: Engines: 3.2L V6 SOHC 18 VALVE ENGINE. 3.2L V6 SUPERCHARGED ENGINE. Transmissions: 5-SPD AUTO W5A330 TRANSMISSION. 5-SPEED AUTO W5A580 TRANSMISSION. 6-SPEED MLGU MANUAL TRANSMISSION.
23
O Ring Mopar
Mopar Notes: Engines: 3.2L V6 SOHC 18 VALVE ENGINE. 3.2L V6 SUPERCHARGED ENGINE. Transmissions: 5-SPD AUTO W5A330 TRANSMISSION. 5-SPEED AUTO W5A580 TRANSMISSION. 6-SPEED MLGU MANUAL TRANSMISSION.
24
O Ring Mopar
Mopar Notes: Engines: 3.2L V6 SOHC 18 VALVE ENGINE. 3.2L V6 SUPERCHARGED ENGINE. Transmissions: 5-SPD AUTO W5A330 TRANSMISSION. 5-SPEED AUTO W5A580 TRANSMISSION. 6-SPEED MLGU MANUAL TRANSMISSION.
25
Engine Oil Filter Mopar
Mopar Notes: Engines: 3.2L V6 SUPERCHARGED ENGINE. Transmissions: 5-SPEED AUTO W5A580 TRANSMISSION.
25
![5102905AB - Engine 3.2L SOHC 18 Valve Supercharged V-6 [EGZ]: Engine Oil Filter for Mopar Image](http://cdn-product-images.revolutionparts.io/assets/7dc1ac026c0f6cfc37dfe64fb5ad34d3.webp "5102905AB - Engine 3.2L SOHC 18 Valve Supercharged V-6 [EGZ]: Engine Oil Filter for Mopar")
Engine Oil Filter Mopar
Mopar Notes: Engines: 3.2L V6 SOHC 18 VALVE ENGINE. 3.2L V6 SUPERCHARGED ENGINE. Transmissions: 5-SPD AUTO W5A330 TRANSMISSION. 5-SPEED AUTO W5A580 TRANSMISSION. 6-SPEED MLGU MANUAL TRANSMISSION.
26
Oil Cap And Filter Assembly Mopar
Mopar Notes: Engines: 3.2L V6 SUPERCHARGED ENGINE. Transmissions: 5-SPEED AUTO W5A580 TRANSMISSION.
26
![5114263AA - Engine 3.2L SOHC 18 Valve Supercharged V-6 [EGZ]: Oil Cap And Filter Assembly for Mopar Image](http://cdn-product-images.revolutionparts.io/assets/219e38f071873ccd52c93d37efbbab83.webp "5114263AA - Engine 3.2L SOHC 18 Valve Supercharged V-6 [EGZ]: Oil Cap And Filter Assembly for Mopar")
Oil Cap And Filter Assembly Mopar
Mopar Notes: Engines: 3.2L V6 SOHC 18 VALVE ENGINE. 3.2L V6 SUPERCHARGED ENGINE. Transmissions: 5-SPD AUTO W5A330 TRANSMISSION. 5-SPEED AUTO W5A580 TRANSMISSION. 6-SPEED MLGU MANUAL TRANSMISSION.
Description: Includes - Cap, O-Rings & Filter
27
Oil Filter Housing Mopar
Mopar Notes: Engines: 3.2L V6 SOHC 18 VALVE ENGINE. 3.2L V6 SUPERCHARGED ENGINE. Transmissions: 5-SPD AUTO W5A330 TRANSMISSION. 5-SPEED AUTO W5A580 TRANSMISSION. 6-SPEED MLGU MANUAL TRANSMISSION.
28
Engine Oil Cooler Mopar
Mopar Notes: Engines: 3.2L V6 SUPERCHARGED ENGINE. Transmissions: 5-SPEED AUTO W5A580 TRANSMISSION.
28
Engine Oil Cooler Mopar
Mopar Notes: Engines: 3.2L V6 SUPERCHARGED ENGINE. Transmissions: 5-SPEED AUTO W5A580 TRANSMISSION.
29
O Ring Mopar
Mopar Notes: Engines: 3.2L V6 SOHC 18 VALVE ENGINE. 3.2L V6 SUPERCHARGED ENGINE. Transmissions: 5-SPD AUTO W5A330 TRANSMISSION. 5-SPEED AUTO W5A580 TRANSMISSION. 6-SPEED MLGU MANUAL TRANSMISSION.
30
O Ring Mopar
Mopar Notes: Engines: 3.2L V6 SOHC 18 VALVE ENGINE. 3.2L V6 SUPERCHARGED ENGINE. Transmissions: 5-SPD AUTO W5A330 TRANSMISSION. 5-SPEED AUTO W5A580 TRANSMISSION. 6-SPEED MLGU MANUAL TRANSMISSION.
31
Bolt Mopar
Mopar Notes: Engines: 3.2L V6 SOHC 18 VALVE ENGINE. 3.2L V6 SUPERCHARGED ENGINE. Transmissions: 5-SPD AUTO W5A330 TRANSMISSION. 5-SPEED AUTO W5A580 TRANSMISSION. 6-SPEED MLGU MANUAL TRANSMISSION.
32
O Ring Mopar
Mopar Notes: Engines: 3.2L V6 SUPERCHARGED ENGINE. Transmissions: 5-SPEED AUTO W5A580 TRANSMISSION.
Description: Oil Filter Housing
