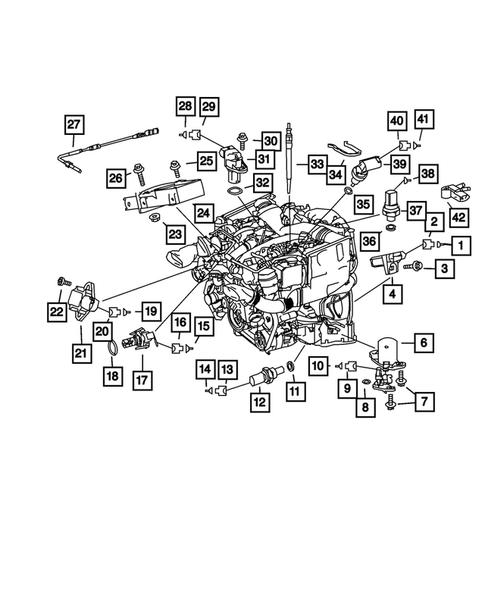

Sensors for 2009 Dodge Sprinter 3500
No.
Part # / Description / Price
Price
N/A
Sensor
Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: [Electronic Gas Actuator / Swirl & Flap / EGR Temp Sensor]
2
Connector Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: Hall Type Sensor Camshaft [3 PIN ; B6/4 - B6/7]
3
Screw Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: Sender Unit to Cylinder Crankcase [6x16]
4
Crankshaft Position Sensor Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: Stamp# A 004 153 87 28
7
Bolt, Mounting Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: [M6.0X1.0X19.0]. Engine Oil Cooler
8
Oil Level Contactor To Oil Pan Seal Ring Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: SPRINTER
9
Connector Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: Roof Refrigerant Pressure Sensor
10
Terminal Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: [0.22 - 0.5 MM2 MLK1.2; M14/28]
12
Temperature Gauge Sending Unit Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: Location Is In The Oil Pan
13
Wiring Repair Connector Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: Temperature Sensor / [2 Pin B10/6]]
21
Map Sensor Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: Pressure Sensor At Cross Pipe
22
Screw, Mounting Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: Intake Manifold Cover To Intake Manifold
23
Hex Nut, Mounting Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: M6. Harmonic Balancer Cover To Cylinder Block
Not For Sale
Not For Sale
25
6 Lobe External Head Bolt, Mounting Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: M6X1.00X16.00. Rear Crankshaft Seal Retainer To Cylinder Block
Not For Sale
Not For Sale
26
Torx Screw, Mounting Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: M6X1.00X50. Throttle Body To Intake Manifold
MSRP $6.45
$4.54
MSRP $6.45
$4.54
33
MSRP $43.70
$30.13
36
37
Pressure Sensor Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: Exhaust Back Pressure
39
Air Temperature Sensor Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: Cooling Water
42
Pressure Sensor Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: Air Cleaner Maintenance Indication
No.
Part # / Description / Price
Price

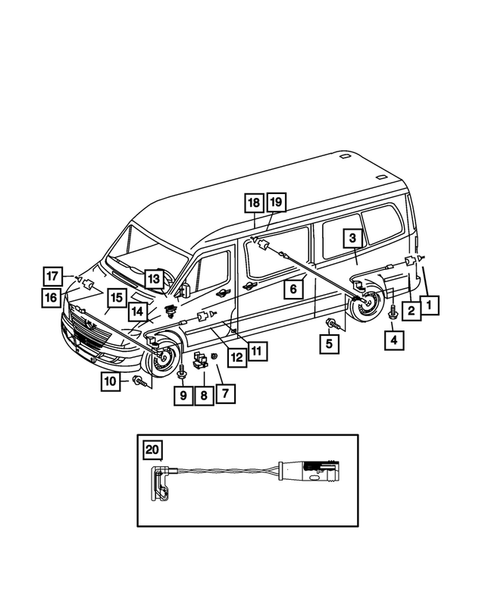

2
Connector Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: Rear Axle Brake Lining Wear Indicator 2-PIN;X88/15;X88/16
3
3
4
Torx Bolt Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: M6X1.00X16.00
7
Hex Nut, Mounting Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: M6. Harmonic Balancer Cover To Cylinder Block
Not For Sale
Not For Sale
13
Retainer Clip Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: Entrance Lamp Separation Point 6.5-7MM
14
Brake Indicator Wiring Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: Front Axle Brake Lining Wear Indicator
15
16
Wiring Repair Connector Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: Temperature Sensor / [2 Pin B10/6]]
20
Brake Wear Sensor, Front And Rear Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: [3500] Only / Front & Rear Brake Wear Sensors
20
Brake Wear Sensor, Rear Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: [2500] Only / Rear Brake Wear Sensors
No.
Part # / Description / Price
Price
2
Wiring Repair Connector Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: Temperature Sensor / [2 Pin B10/6]]
3
Ambient Temperature Sensor Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: Outboard Temperature Feeler
6
Hex Flange Head Bolt, Mounting Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: M8x1.25x20.00. Oil Pan Upper Gallery Plug To Cylinder Block
Not For Sale
Not For Sale
No.
Part # / Description / Price
Price
1
Pan Head Screw, Mounting, Secondary Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: M6x1.00x16.00. Timing Chain Guide To Cylinder Block
Not For Sale
Not For Sale
4
Connector Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE.
Description: Control Unit Independent Heating [N33 / 3]
