Home 2015 Jeep Compass Sport 2.0L L4 - Gas Transfer Case Assembly

Transfer Case Assembly for 2015 Jeep Compass

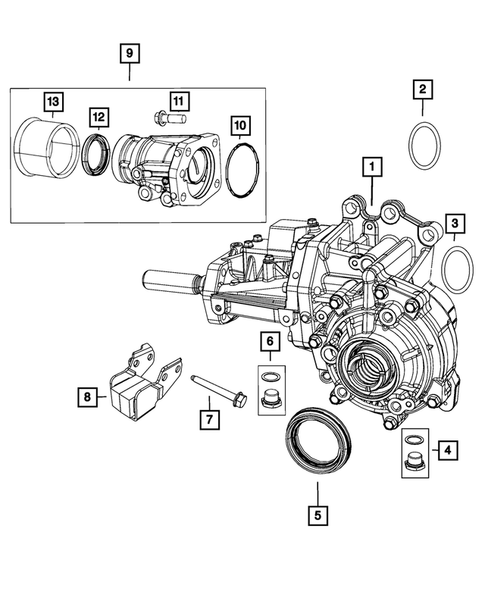

Transfer Case Assembly for 2015 Jeep Compass #0

Transfer Case Assembly for 2015 Jeep Compass #1

Transfer Case Assembly for 2015 Jeep Compass #0

1

10

12

13

2

3

4

5

6

7

8

9

No.

Part # / Description / Price

Price

N/A

6509047AA - Power Transfer Unit; Transfer Case: Hex Flange Head Bolt for Mopar Image

Hex Flange Head Bolt

Mopar

Mopar

Notes: Transmissions: 5-SPEED MANUAL T355 TRANSMISSION. 6-SPEED AUTOMATIC TRANSMISSION. CONT.VAR. W/OFF-RD CRAWL RATIO TRANS. CONTINUOUSLY VARIABLE TRANSAXLE II.

Description: M12X1.25X118.00. 74 Power Transfer Unit to Transmission

Not For Sale

Not For Sale

N/A

6509046AA - Power Transfer Unit; Transfer Case: Hex Flange Head Bolt for Mopar Image

Hex Flange Head Bolt

Mopar

Mopar

Notes: Transmissions: 5-SPEED MANUAL T355 TRANSMISSION. 6-SPEED AUTOMATIC TRANSMISSION. CONT.VAR. W/OFF-RD CRAWL RATIO TRANS. CONTINUOUSLY VARIABLE TRANSAXLE II.

Description: M12X1.25X40.00. 49 Power Transfer Unit to Transmission

1

5273456AB - Power Transfer Unit; Transfer Case: Power Transfer Unit for Mopar Image

Power Transfer Unit ¹

Mopar

Mopar

Notes: Transmissions: 5-SPEED MANUAL T355 TRANSMISSION. CONT.VAR. W/OFF-RD CRAWL RATIO TRANS. CONTINUOUSLY VARIABLE TRANSAXLE II.

Description: See Note:

2

5105704AA - Power Transfer Unit; Transfer Case: Input Seal for Mopar Image

Transfer Case Seal

Mopar

Mopar

Description: Power Transfer Unit To Transmission / [O Ring]

3

68005267AA - Power Transfer Unit; Transfer Case: O Ring for Mopar Image

Transfer Case O Ring

Mopar

Mopar

Notes: Transmissions: 5-SPEED MANUAL T355 TRANSMISSION. 6-SPEED AUTOMATIC TRANSMISSION. CONT.VAR. W/OFF-RD CRAWL RATIO TRANS. CONTINUOUSLY VARIABLE TRANSAXLE II.

MSRP $23.10

$16.58

MSRP $23.10

$16.58

4

68005265AA - Power Transfer Unit; Transfer Case: Oil Drain Plug for Mopar Image

Oil Drain Plug

Mopar

Mopar

Notes: Transmissions: 5-SPEED MANUAL T355 TRANSMISSION. 6-SPEED AUTOMATIC TRANSMISSION. CONT.VAR. W/OFF-RD CRAWL RATIO TRANS. CONTINUOUSLY VARIABLE TRANSAXLE II.

Description: Includes: Washer Seal

5

68005263AA - Power Transfer Unit; Transfer Case: Halfshaft Seal for Mopar Image

Halfshaft Seal

Mopar

Mopar

Notes: Transmissions: 5-SPEED MANUAL T355 TRANSMISSION. CONT.VAR. W/OFF-RD CRAWL RATIO TRANS. CONTINUOUSLY VARIABLE TRANSAXLE II.

Description: 68005263AA

MSRP $43.05

$29.56

MSRP $43.05

$29.56

6

68005264AA - Power Transfer Unit; Transfer Case: Oil Fill Plug for Mopar Image

Oil Fill Plug

Mopar

Mopar

Notes: Transmissions: 5-SPEED MANUAL T355 TRANSMISSION. 6-SPEED AUTOMATIC TRANSMISSION. CONT.VAR. W/OFF-RD CRAWL RATIO TRANS. CONTINUOUSLY VARIABLE TRANSAXLE II.

Description: Includes: Washer Seal

7

6105073AA - Power Transfer Unit; Transfer Case: Hex Head Bolt for Mopar Image

Hex Head Bolt, Mounting

Mopar

Mopar

Description: M10x1.50x90. Engine Mount Bracket To Frame RaiL Top

Not For Sale

Not For Sale

8

5273367AA - Power Transfer Unit; Transfer Case: Transfer Case Damper for Mopar Image

Transfer Case Damper

Mopar

Mopar

9

68005250AA - Power Transfer Unit; Transfer Case: Extension for Mopar Image

Ptu Extension Housing

Mopar

Mopar

Notes: Transmissions: 5-SPEED MANUAL T355 TRANSMISSION. 6-SPEED AUTOMATIC TRANSMISSION. CONT.VAR. W/OFF-RD CRAWL RATIO TRANS. CONTINUOUSLY VARIABLE TRANSAXLE II.

Description: Includes: Extension, Extension Mounting Bolts, Extension Seal, Extension Seal Dust Guard And Extension O-Ring

10

68005261AA - Power Transfer Unit; Transfer Case: O Ring for Mopar Image

Extension O-ring

Mopar

Mopar

Notes: Transmissions: 5-SPEED MANUAL T355 TRANSMISSION. 6-SPEED AUTOMATIC TRANSMISSION. CONT.VAR. W/OFF-RD CRAWL RATIO TRANS. CONTINUOUSLY VARIABLE TRANSAXLE II.

12

68005260AA - Power Transfer Unit; Transfer Case: Extension Seal for Mopar Image

Extension Seal

Mopar

Mopar

Notes: Transmissions: 5-SPEED MANUAL T355 TRANSMISSION. 6-SPEED AUTOMATIC TRANSMISSION. CONT.VAR. W/OFF-RD CRAWL RATIO TRANS. CONTINUOUSLY VARIABLE TRANSAXLE II.

MSRP $32.70

$23.53

MSRP $32.70

$23.53

13

68005258AA - Power Transfer Unit; Transfer Case: Dust Shield for Mopar Image

Guard-dust Seal Guard

Mopar

Mopar

Notes: Transmissions: 5-SPEED MANUAL T355 TRANSMISSION. 6-SPEED AUTOMATIC TRANSMISSION. CONT.VAR. W/OFF-RD CRAWL RATIO TRANS. CONTINUOUSLY VARIABLE TRANSAXLE II.

¹ This price excludes a refundable manufacturer's core charge. Add the part to your cart to see the core charge.

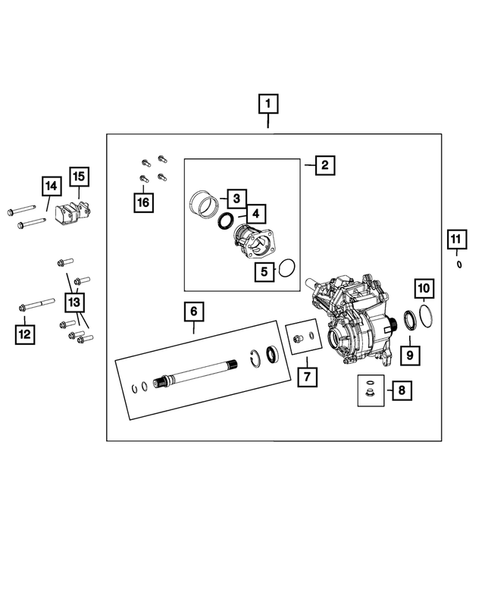

Transfer Case Assembly for 2015 Jeep Compass #1

1

10

11

12

13

14

15

2

3

4

5

6

7

8

No.

Part # / Description / Price

Price

1

52123878AB - Power Transfer Unit; Transfer Case: Power Transfer Unit for Mopar Image

Power Transfer Unit ¹

Mopar

Mopar

Notes: Transmissions: 6-SPEED AUTOMATIC TRANSMISSION.

Description: See Note:

2

68005250AA - Power Transfer Unit; Transfer Case: Extension for Mopar Image

Ptu Extension Housing

Mopar

Mopar

Notes: Transmissions: 5-SPEED MANUAL T355 TRANSMISSION. 6-SPEED AUTOMATIC TRANSMISSION. CONT.VAR. W/OFF-RD CRAWL RATIO TRANS. CONTINUOUSLY VARIABLE TRANSAXLE II.

Description: Includes: Extension, Extension Mounting Bolts, Extension Seal, Extension Seal Dust Guard And Extension O-Ring

3

68005258AA - Power Transfer Unit; Transfer Case: Dust Shield for Mopar Image

Guard-dust Seal Guard

Mopar

Mopar

Notes: Transmissions: 5-SPEED MANUAL T355 TRANSMISSION. 6-SPEED AUTOMATIC TRANSMISSION. CONT.VAR. W/OFF-RD CRAWL RATIO TRANS. CONTINUOUSLY VARIABLE TRANSAXLE II.

4

68005260AA - Power Transfer Unit; Transfer Case: Extension Seal for Mopar Image

Extension Seal

Mopar

Mopar

Notes: Transmissions: 5-SPEED MANUAL T355 TRANSMISSION. 6-SPEED AUTOMATIC TRANSMISSION. CONT.VAR. W/OFF-RD CRAWL RATIO TRANS. CONTINUOUSLY VARIABLE TRANSAXLE II.

MSRP $32.70

$23.53

MSRP $32.70

$23.53

5

68005261AA - Power Transfer Unit; Transfer Case: O Ring for Mopar Image

Extension O-ring

Mopar

Mopar

Notes: Transmissions: 5-SPEED MANUAL T355 TRANSMISSION. 6-SPEED AUTOMATIC TRANSMISSION. CONT.VAR. W/OFF-RD CRAWL RATIO TRANS. CONTINUOUSLY VARIABLE TRANSAXLE II.

6

68237777AA - Power Transfer Unit; Transfer Case: Intermediate Shaft Kit for Mopar Image

Intermediate Shaft Kit

Mopar

Mopar

Notes: Transmissions: 6-SPEED AUTOMATIC TRANSMISSION.

Description: Intermediate Shaft Includes Bearings, Seal & Snap Rings

7

68005264AA - Power Transfer Unit; Transfer Case: Oil Fill Plug for Mopar Image

Oil Fill Plug

Mopar

Mopar

Notes: Transmissions: 5-SPEED MANUAL T355 TRANSMISSION. 6-SPEED AUTOMATIC TRANSMISSION. CONT.VAR. W/OFF-RD CRAWL RATIO TRANS. CONTINUOUSLY VARIABLE TRANSAXLE II.

Description: Includes: Washer Seal

8

68005265AA - Power Transfer Unit; Transfer Case: Oil Drain Plug for Mopar Image

Oil Drain Plug

Mopar

Mopar

Notes: Transmissions: 5-SPEED MANUAL T355 TRANSMISSION. 6-SPEED AUTOMATIC TRANSMISSION. CONT.VAR. W/OFF-RD CRAWL RATIO TRANS. CONTINUOUSLY VARIABLE TRANSAXLE II.

Description: Includes: Washer Seal

10

68005267AA - Power Transfer Unit; Transfer Case: O Ring for Mopar Image

Transfer Case O Ring

Mopar

Mopar

Notes: Transmissions: 5-SPEED MANUAL T355 TRANSMISSION. 6-SPEED AUTOMATIC TRANSMISSION. CONT.VAR. W/OFF-RD CRAWL RATIO TRANS. CONTINUOUSLY VARIABLE TRANSAXLE II.

MSRP $23.10

$16.58

MSRP $23.10

$16.58

11

5105704AA - Power Transfer Unit; Transfer Case: Input Seal for Mopar Image

Transfer Case Seal

Mopar

Mopar

Description: Power Transfer Unit To Transmission / [O Ring]

12

6509047AA - Power Transfer Unit; Transfer Case: Hex Flange Head Bolt for Mopar Image

Hex Flange Head Bolt

Mopar

Mopar

Notes: Transmissions: 5-SPEED MANUAL T355 TRANSMISSION. 6-SPEED AUTOMATIC TRANSMISSION. CONT.VAR. W/OFF-RD CRAWL RATIO TRANS. CONTINUOUSLY VARIABLE TRANSAXLE II.

Description: M12X1.25X118.00. 74 Power Transfer Unit to Transmission

Not For Sale

Not For Sale

13

6509046AA - Power Transfer Unit; Transfer Case: Hex Flange Head Bolt for Mopar Image

Hex Flange Head Bolt

Mopar

Mopar

Notes: Transmissions: 5-SPEED MANUAL T355 TRANSMISSION. 6-SPEED AUTOMATIC TRANSMISSION. CONT.VAR. W/OFF-RD CRAWL RATIO TRANS. CONTINUOUSLY VARIABLE TRANSAXLE II.

Description: M12X1.25X40.00. 49 Power Transfer Unit to Transmission

14

6105073AA - Power Transfer Unit; Transfer Case: Hex Head Bolt for Mopar Image

Hex Head Bolt, Mounting

Mopar

Mopar

Description: M10x1.50x90. Engine Mount Bracket To Frame RaiL Top

Not For Sale

Not For Sale

15

5273367AA - Power Transfer Unit; Transfer Case: Transfer Case Damper for Mopar Image

Transfer Case Damper

Mopar

Mopar

¹ This price excludes a refundable manufacturer's core charge. Add the part to your cart to see the core charge.
